SI-A3000
High Voltage Rectifiers

Product information

Product family	High Voltage Rectifiers Rectification of high voltages
Article description	Si-A3000/1350-2.5 HV Diode, D55x23, 8000V, 2.5A
Minimum order quantity	1
Stock	360
Customs Tariff Number	85411000
RoHS	compliant with exemption
REACH	declarable
Lead free	No
Halogen free	No

Article number	SI-A3000

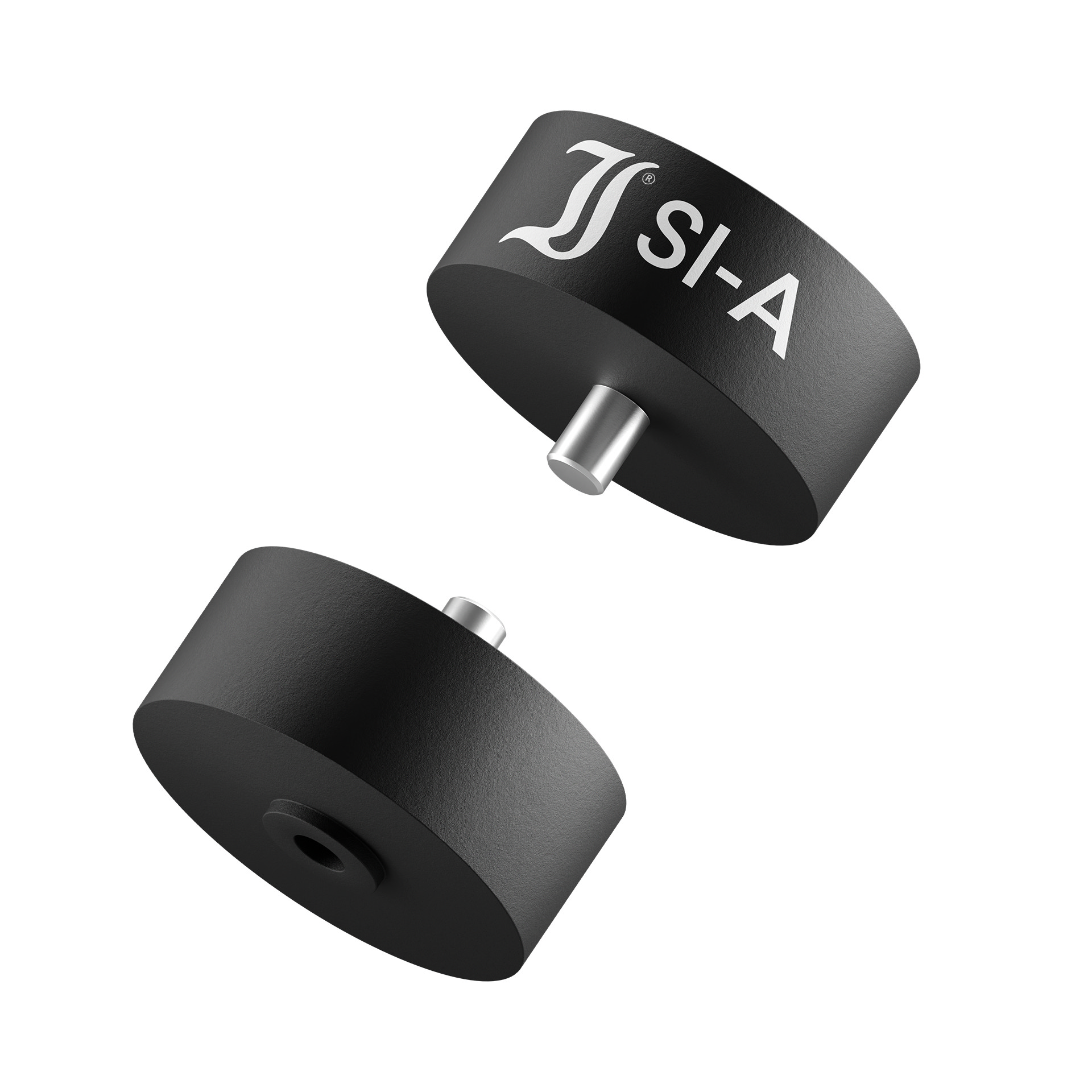

Type	Hockey-Puck
Package	D55x23
Qualification	Industrial Grade
Config	Single
Life Cycle	active
ESD sensitive	No
MSL	n/a

Repetitive peak reverse voltage	VRRM	8000 V
DC blocking voltage	VDC
Maximum average forward rectified current	IFAV	2.50 A

	@ TLoc	50 °C
	Location	A
Reverse recovery time	trr	1500 ns
Junction temperature	Tjmin	-50 °C
	Tjmax	150 °C
Peak forward surge current 50Hz	IFSM	200.00 A
Peak forward surge current 60Hz	IFSM	220.00 A
Forward voltage 25°C	VF	6.00 V
	@ IF	2.50 A
Forward voltage (b)	VF
	@ IF
	@ Tj
Leakage current 25°C	IR	5.000 µA
	@ VR	8000 V
Leakage current @Tx	IR	1000.000 µA
	@ VR	8000.0 V
	@ Tj	150 °C
Junction capacitance	Cj	16.0 pF
	@ VR	4.0 V
Net weight	mnet	125.000 g
Case flammability	UL94-V0	Yes
UL recognized	UL-Recognition
Surge peak reverse voltage	VRMS	3000 V
Repetitive peak forward current	IFRM	2.5 A
Peak reverse avalanche energy	ERSM
Storage temperature	Tsmin	-50 °C
	Tsmax	150 °C
Marking	Marking	SI-A3000
Thermal resistance junction	RTH
	Location
Thermal resistance junction (b)	RTH
	Location
Rating for fusing	i²t
Solder & Assembly	Solder & Assembly	260°C/10s
