DI075SIC055D7
SiC MOSFETs

Downloads & Links
Technical data
News and Updates
Request sample

Product information

Product family SiC MOSFETs
High Speed High Voltage (Power) Switch
Article description DI075SIC055D7 750V SiC MOSFET
SiC MOSFET, TO-263-7L, N, 53A, 750V, 55mΩ, 175°C
Minimum order quantity 800
Stock 0
Customs Tariff Number 85412900
RoHS compliant with exemption 7(a)-I
REACH declarable
Lead free No
Halogen free No

Downloads & Links

Distributor Availability

Technical data

Article number DI075SIC055D7
DI075SIC055D7 Single
Type Wire-lead

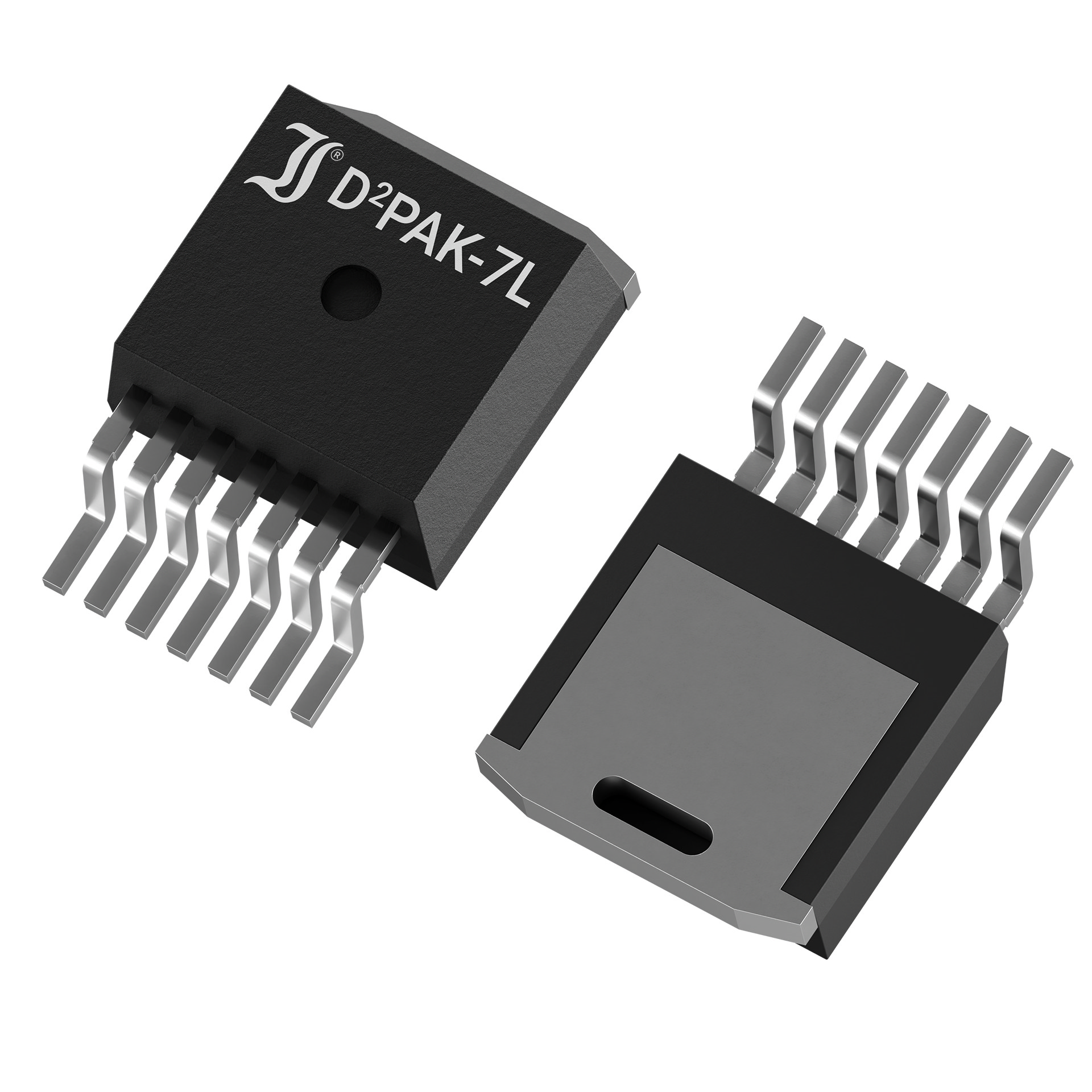

Package TO-263-7L
Qualification Industrial Grade
Config Single
Life Cycle active
ESD sensitive No
MSL n/a

Drain source voltage VDS 750 V
Drain current 25°C ID 53 A
On-resistance 1 RDSon1 0.055 Ω
@ ID 20 A
@ VGS 18 V
On-resistance 2 RDSon2 TBA Ω
@ ID 20 A
@ VGS 18 V
Polarity pol N
ESD protection ESD protected No
Gate source voltage DC VGSS 18 V
Gate source voltage ESD VGSS null V
Drain current 100°C ID 37 A
Peak drain current IDM 132 A
@ tp null µs
Junction temperature Tjmin -55 °C
Tjmax 175 °C
Power dissipation Ptot 214 W
@ TLoc 25 °C
Location Contact
Threshold voltage VGSth min 1.9 V
VGSth max 4.8 V
Turn-on delay time tD(on) 10 ns
Rise time tr 12 ns
Turn-off delay time tD(off) 25 ns
Fall time tf 8 ns
Total switching energy Etotal 0 mJ
Total gate charge (4.5V) Qg (4.5V) null nC
Total gate charge (10V) Qg (10V) 70 nC
Gate-drain charge Qgd 18 nC
Single pulse avalanche energy Eas null mJ
Input capacitance Ciss 2320 pF
Output capacitance Coss 150 pF
Reverse transfer capacitance Crss 14 pF
Reverse recovery charge Qrr 340 nC
Avalanche No
Net weight mnet 0.32 g
Marking Marking Type
Case flammability UL94-V0 Yes
Thermal resistance junction RTH 1.1 K/W
Location case
UL recognized UL-Recognition null
Thermal resistance junction (b) RTH TBA K/W
Location ambient
Storage temperature Tsmin -55 °C
Tsmax 175 °C
Solder & Assembly Solder & Assembly 260°/10s
