Product information

Product family MOSFETs (Field Effect Transistors)
(Power) switches, signal processing, polarity protection
Article description DI0A35N06PGK
MOSFET, DFN1006-3, N, 60V, 0.35A, 1.4Ω, 150°C
Minimum order quantity 10.000
Stock 0
Customs Tariff Number 85412100
RoHS compliant
REACH not declarable
Lead free Yes
Halogen free Yes

Downloads & Links

Distributor Availability

Technical data

Article number DI0A35N06PGK
DI0A35N06PGK Single Protected
Type SMD

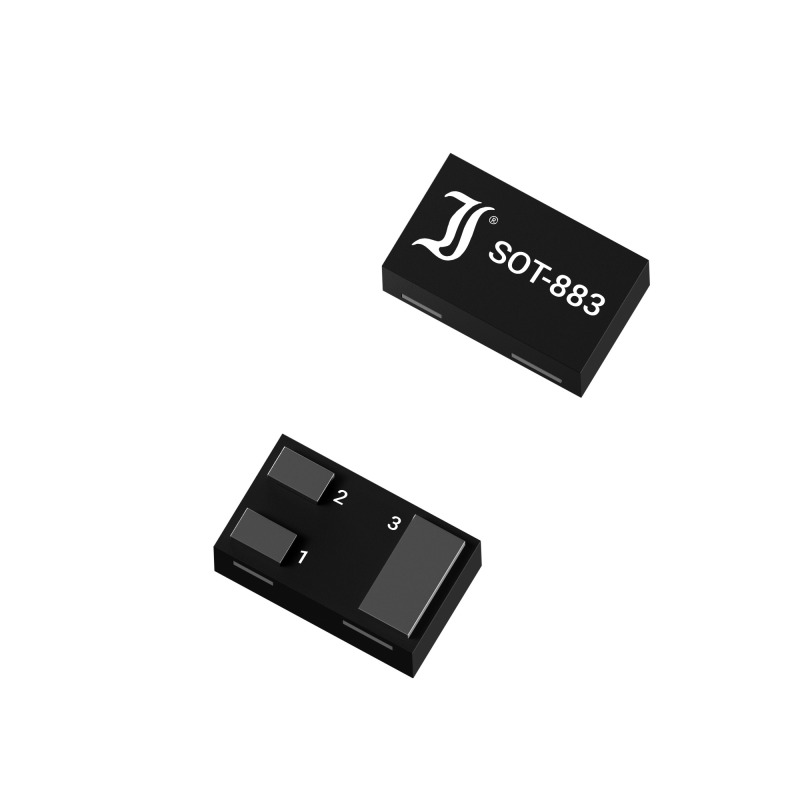

Package DFN1006-3
Qualification Industrial Grade
Config Single Protected
Life Cycle active
ESD sensitive No
MSL 1

ESD protection ESD protected Yes
Polarity pol N
Drain source voltage VDS 60 V
Drain current 25°C ID 0.35 A
On-resistance 1 RDSon1 1.4 Ω
@ ID 0.5 A
@ VGS 10 V
Drain current 100°C ID null A
On-resistance 2 RDSon2 1.4 Ω
@ ID 0.2 A
@ VGS 4.5 V
Junction temperature Tjmin -55 °C
Tjmax 150 °C
Power dissipation Ptot 0.223 W
@ TLoc 25 °C
Location ambient
Avalanche No
Peak drain current IDM 1.2 A
@ tp null µs
Threshold voltage VGSth min 0.5 V
VGSth max 1 V
Turn-on delay time tD(on) 4 ns
Rise time tr 3 ns
Turn-off delay time tD(off) 19 ns
Fall time tf 12 ns
Total gate charge (10V) Qg (10V) 1.9 nC
Total gate charge (4.5V) Qg (4.5V) null nC
Gate-drain charge Qgd 0 nC
Single pulse avalanche energy Eas null mJ
Input capacitance Ciss 32 pF
Output capacitance Coss 11 pF
Reverse transfer capacitance Crss 8 pF
Reverse recovery charge Qrr
Case flammability UL94-V0 Yes
Net weight mnet 0.001 g
Marking Marking MT
Thermal resistance junction RTH 560 K/W
Location ambient
UL recognized UL-Recognition null
Thermal resistance junction (b) RTH null K/W
Location null
Storage temperature Tsmin -55 °C
Tsmax 150 °C
Solder & Assembly Solder & Assembly 260°/10s
Gate source leakage current IGSS 10 µA
@ VGS 20 V
Drain source leakage current IDSS 1 µA
@ VDS 48 V
Gate source voltage DC VGSS 20 V
Gate source voltage ESD VGSS 1000 V
Forward transconductance gfs null mA/V
Intrinsic gate resistance RGi 100 Ω
