MOSFET PDU Power Delivery Unit 100V | 80A

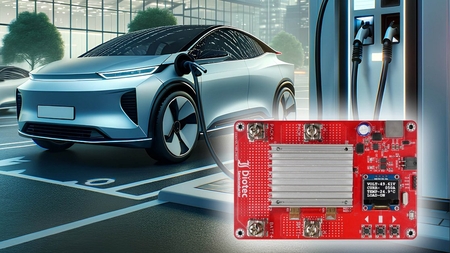

This board is used to demonstrate the use of the Diotec DI280N10TL in a high-power delivery unit. It is capable of switching up to 80 A at 48 V in both directions. This makes it ideally suited for battery systems which need not only to supply power, but also to receive during the charging cycle. Current, Voltage, temperature and operating mode is displayed on an OLED display. Various other Diotec parts such as LDOs, small signal MOSFETs, Rectifier Diodes, Zeners and ESD protection diodes is also used on this module.
