ZMY3.0G
Zener Diodes
Product information
| Product family | Zener Diodes Voltage stabilization |
|---|---|
| Article description |
ZMY3.0G
Zener, Glass-Melf, 3V, 1W, ±5% |
| Minimum order quantity | 5.000 |
| Stock | 0 |
| Customs Tariff Number | 85411000 |
| RoHS | compliant |
| REACH | declarable |
| Lead free | Yes |
| Halogen free | No |
Downloads & Links
Distributor Availability
Technical data
| Article number | ZMY3.0G | |
|---|---|---|
|
||
| Type | SMD | |

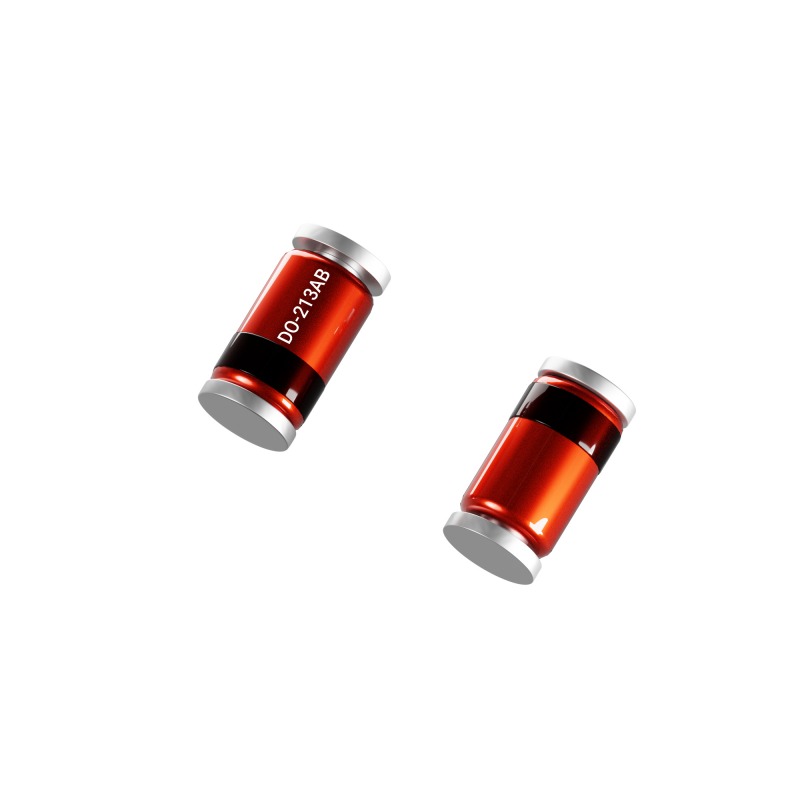

| Package | DO-213AB/Melf-Glass | |
| Qualification | Industrial Grade | |
| Config | Single | |
| Life Cycle | active | |
| ESD sensitive | No | |
| MSL | 1 | |
| Zener voltage | Vzmin | 2.8 V |
| Vznom | 3 V | |
| Vzmax | 3.2 V | |
| @ Iztest | 100 mA | |
| Power dissipation | Ptot | 1 W |
| @ TLoc | 25 °C | |
| Location | Ambient | |
| Power dissipation (b) | PPPM | |
| @ TLoc | ||
| Location | ||
| Tolerance | Voltage Tolerance | ±5% |
| Junction temperature | Tjmin | |
| Tjmax | 175 °C | |
| Leakage current 25°C | IR | |
| @ VR | ||
| Dynamic resistance | rzj | 5 Ω |
| @ Iz | ||
| Junction capacitance | Cj | |
| @ VR | ||
| Dynamic resistance (b) | rzj | |
| @ Iz | ||
| Temperature coefficient | aVz | |
| Zener current | IZmax | |
| @ TLoc | ||
| Location | ||
| Net weight | mnet | |
| Marking | Marking | |
| Case flammability | UL94-V0 | No |
| Thermal resistance junction | RTH | |
| Location | ||
| UL recognized | UL-Recognition | |
| Thermal resistance junction (b) | RTH | |
| Location | ||
| Storage temperature | Tsmin | |
| Tsmax | ||
| Solder & Assembly | Solder & Assembly | |
