LDI734C2.8ENG
Linear Voltage Regulator
Product information
| Product family | Linear Voltage Regulator Constant DC voltage regulation, Protection against voltage overshoot |
|---|---|
| Article description |
LDI734C2.8ENG
Capacitor-free LDO
LDO, DFN-4, 6V, 2.72V, 2.82V |
| Minimum order quantity | 3.000 |
| Stock | 0 |
| Customs Tariff Number | 85423990 |
| RoHS | compliant |
| REACH | not declarable |
| Lead free | Yes |
| Halogen free | Yes |
Downloads & Links
Distributor Availability
Technical data
| Article number | LDI734C2.8ENG | |
|---|---|---|
|
||
| Type | SMD | |

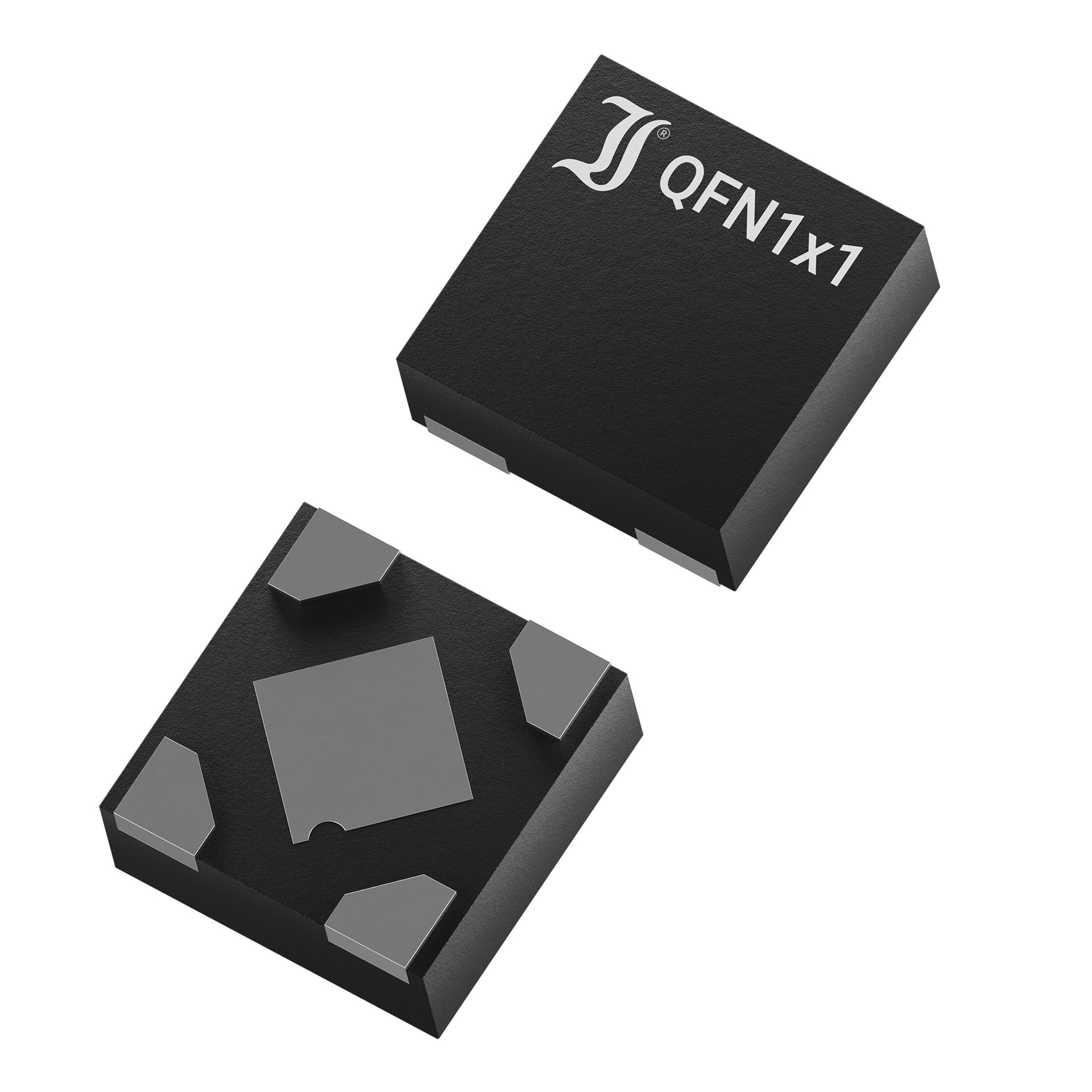

| Package | QFN1x1 | |
| Qualification | Industrial Grade | |
| Config | Enable DFN1x1 | |
| Life Cycle | engineering sample | |
| ESD sensitive | No | |
| MSL | 3 | |
| Polarity | pol | |
| Output voltage | VOUTmin | 2.970 V |
| VOUTmax | 3.030 V | |
| Output current | IO | 0.30 A |
| IOmin | ||
| Tolerance | Voltage Tolerance | |
| Input voltage | Vin | 6.0 V |
| Vin-min | ||
| Power dissipation | Ptot | |
| @ TLoc | ||
| Location | ||
| Junction temperature | Tjmin | |
| Tjmax | 125 °C | |
| Storage temperature | Tsmin | |
| Tsmax | ||
| Dropout voltage | VD | 0.00 V |
| @ IOUT | ||
| Dropout voltage (b) | VD | |
| @ IOUT | ||
| Dropout voltage (c) | VD | |
| @ IOUT | ||
| Quiescent current | IQ | 0.060 mA |
| Thermal resistance junction | RTH | |
| Location | ||
| Thermal resistance junction (b) | RTH | |
| Location | ||
| Net weight | mnet | |
| Marking | Marking | |
| Case flammability | UL94-V0 | No |
| UL recognized | UL-Recognition | |
| Solder & Assembly | Solder & Assembly | |
| Line regulation | DVout-in | |
| Load regulation | DVout-in | |
