LDI1117-ADH
Linear Voltage Regulator

Downloads & Links
Technical data
Related products
News and Updates
Application Reference Diagrams
Request sample

Product information

Product family Linear Voltage Regulator
Constant DC voltage regulation, Protection against voltage overshoot
Article description LDI1117-ADH
LDO, SOT-223, 20V, 1.25V, 13.65V, 125°C, 5mA
Minimum order quantity 2.500
Stock 0
Customs Tariff Number 85423990
RoHS compliant
REACH not declarable
Lead free Yes
Halogen free Yes

Downloads & Links

Distributor Availability

Technical data

Article number LDI1117-ADH
LDI1117-ADH Adjustable
Type SMD

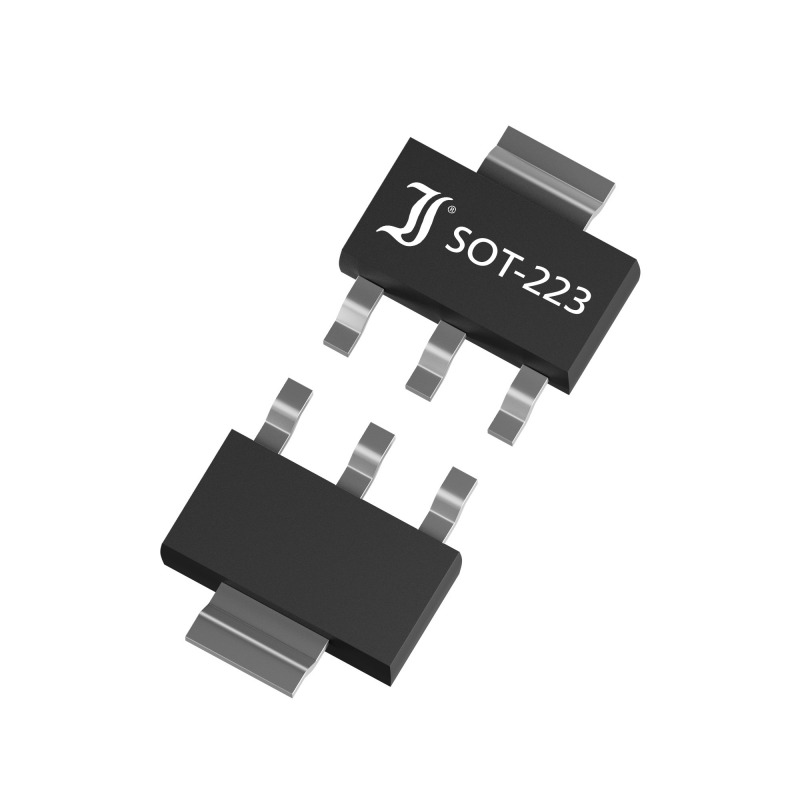

Package SOT-223
Qualification Industrial Grade
Config Adjustable
Life Cycle active
ESD sensitive No
MSL 3

Polarity pol Positive
Output voltage VOUTmin 1.25 V
VOUTmax 13.65 V
Output current IO 1 A
IOmin null mA
Tolerance Voltage Tolerance
Input voltage Vin 20 V
Vin-min null V
Power dissipation Ptot internally limited W
@ TLoc 25 °C
Location ambient
Junction temperature Tjmin -40 °C
Tjmax 125 °C
Storage temperature Tsmin -55 °C
Tsmax 150 °C
Dropout voltage VD 1 V
@ IOUT 100 mA
Dropout voltage (b) VD 1.08 V
@ IOUT 500 mA
Dropout voltage (c) VD 1.15 V
@ IOUT 1000 mA
Quiescent current IQ 5 mA
Thermal resistance junction RTH 100 K/W
Location ambient
Thermal resistance junction (b) RTH 15 K/W
Location case
Net weight mnet 0.12 g
Marking Marking Type
Case flammability UL94-V0 Yes
UL recognized UL-Recognition null
Solder & Assembly Solder & Assembly 260°/10s
Line regulation DVout-in .2
Load regulation DVout-in .4
