ESD4E02B04-AQ
ESD Protection Diodes
Product information
| Product family | ESD Protection Diodes Protection against static discharges |
|---|---|
| Article description |
ESD4E02B04-AQ
ESD, DFN2510, 7.5V, 5V, 0.2µA, Bidir Array, AEC-Q101 |
| Minimum order quantity | 3.000 |
| Stock | 6.000 |
| Customs Tariff Number | 85411000 |
| RoHS | compliant |
| REACH | not declarable |
| Lead free | Yes |
| Halogen free | Yes |
Downloads & Links
Distributor Availability
Technical data
| Article number | ESD4E02B04-AQ | |
|---|---|---|
|
||
| Type | SMD | |

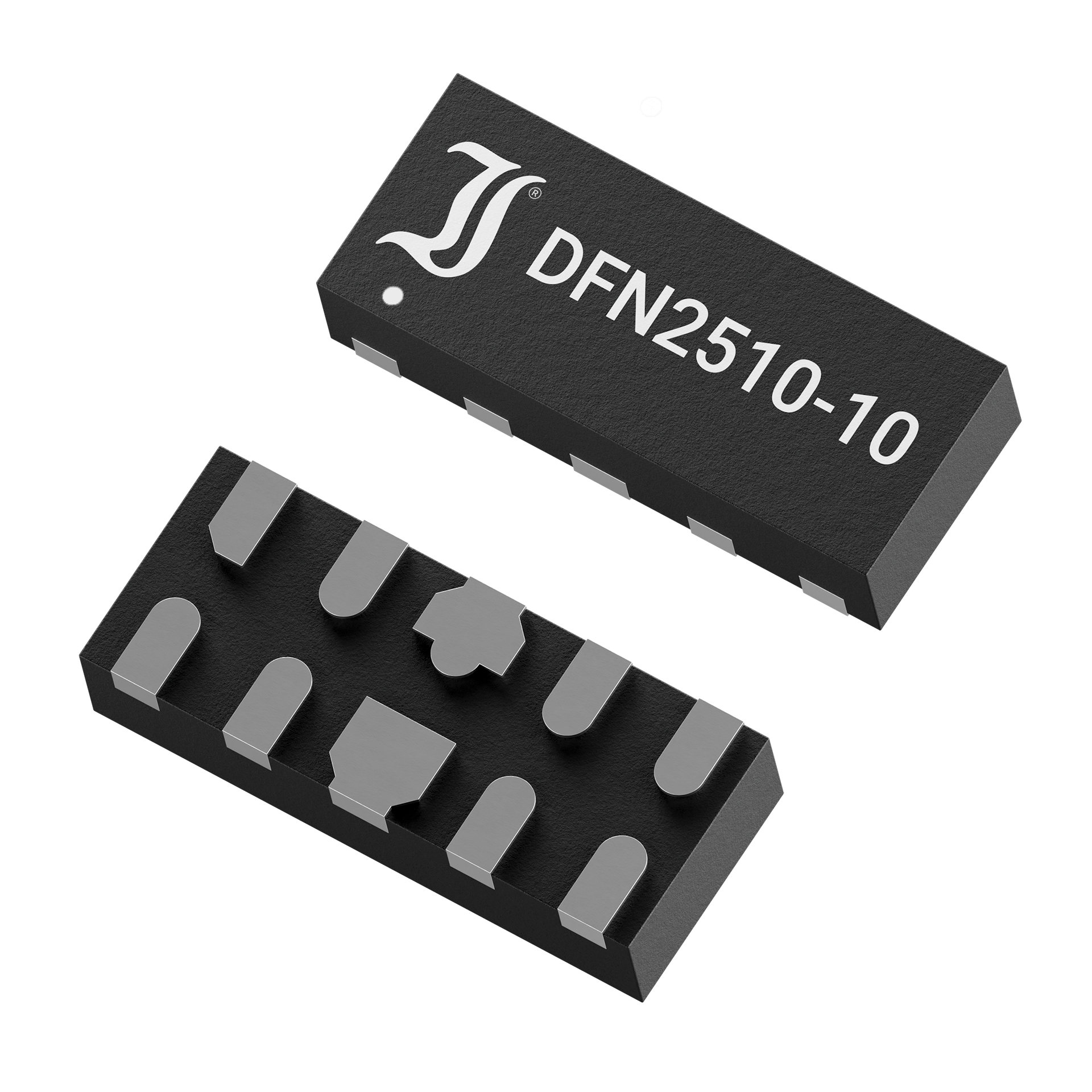

| Package | DFN2510-10 | |
| Qualification | AEC-Q101 | |
| Config | Array | |
| Life Cycle | active | |
| ESD sensitive | No | |
| MSL | 1 | |
| Breakdown voltage | VBRmin | 5.8 V |
| VBRnom | 7.65 V | |
| VBRmax | 9.5 V | |
| @ IT | 1 mA | |
| Stand-off voltage | VWM | 5 V |
| @ ID | 2E-7 A | |
| @ IR | 1 mA | |
| Peak pulse power dissipation | PPPM | 60 W |
| No of channels | Channels | 1 |
| ESD contact | Vpp | 30 kV |
| ESD HBM | Vpp | 30 kV |
| Junction temperature | Tjmin | -50 °C |
| Tjmax | 125 °C | |
| Maximum reverse current | ID @ VWM | 0.2 µA |
| Maximum clamping voltage | VC | 7.5 V |
| @ IPPM | 1 A | |
| Junction capacitance | Cj | 0.3 pF |
| @ VR | 0 V | |
| Net weight | mnet | 0.01 g |
| Marking | Marking | 0544P |
| Case flammability | UL94-V0 | Yes |
| Thermal resistance junction | RTH | null K/W |
| Location | null | |
| UL recognized | UL-Recognition | null |
| Thermal resistance junction (b) | RTH | null K/W |
| Location | null | |
| Storage temperature | Tsmin | -50 °C |
| Tsmax | 150 °C | |
| Solder & Assembly | Solder & Assembly | 260°/10s |
