Product information

Product family ESD Protection Diodes
Protection against static discharges
Article description ESD3Z5V0
ESD, SOD-323F, 9.8V, 5V, 10µA, Unidir
Minimum order quantity 3.000
Stock 1.590.000
Customs Tariff Number 85411000
RoHS compliant
REACH not declarable
Lead free Yes
Halogen free Yes

Downloads & Links

Distributor Availability

Technical data

Article number ESD3Z5V0
ESD3Z5V0 Unidirectional Single
Type SMD

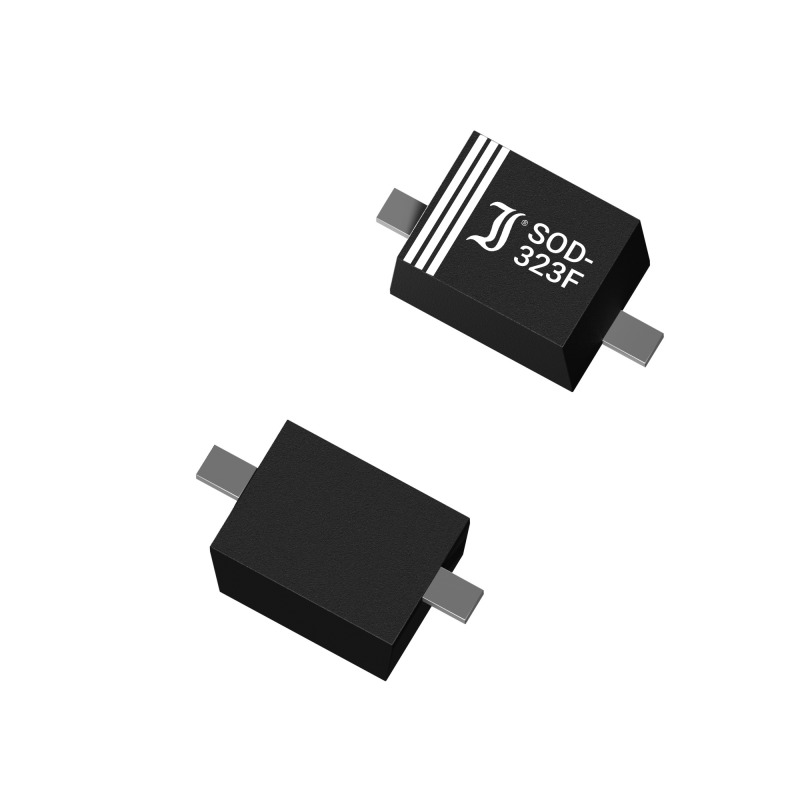

Package SOD-323F
Qualification Industrial Grade
Config Unidirectional Single
Life Cycle active
ESD sensitive No
MSL 1

Breakdown voltage VBRmin 6 V
VBRnom 7.4 V
VBRmax 8.8 V
@ IT 1 mA
Stand-off voltage VWM 5 V
@ ID 1E-5 A
@ IR 1 mA
Peak pulse power dissipation PPPM 350 W
No of channels Channels 1
ESD contact Vpp null kV
ESD HBM Vpp 30 kV
Junction temperature Tjmin -50 °C
Tjmax 125 °C
Maximum reverse current ID @ VWM 10 µA
Maximum clamping voltage VC 9.8 V
@ IPPM 5 A
Junction capacitance Cj 350 pF
@ VR 0 V
Net weight mnet 0.005 g
Marking Marking 5-
Case flammability UL94-V0 Yes
Thermal resistance junction RTH null K/W
Location null
UL recognized UL-Recognition null
Thermal resistance junction (b) RTH null K/W
Location null
Storage temperature Tsmin -50 °C
Tsmax 150 °C
Solder & Assembly Solder & Assembly 260°/10s
