ESD0541Z
ESD Protection Diodes

Downloads & Links
Technical data
News and Updates
Application Reference Diagrams
Request sample

Product information

Product family ESD Protection Diodes
Protection against static discharges
Article description ESD0541Z
ESD, 0603, 15V, 5V, 0.05µA, Bidir
Minimum order quantity 10.000
Stock 0
Customs Tariff Number 85411000
RoHS compliant
REACH not declarable
Lead free Yes
Halogen free Yes

Downloads & Links

Distributor Availability

Technical data

Article number ESD0541Z
ESD0541Z Bidirectional Single
Type SMD

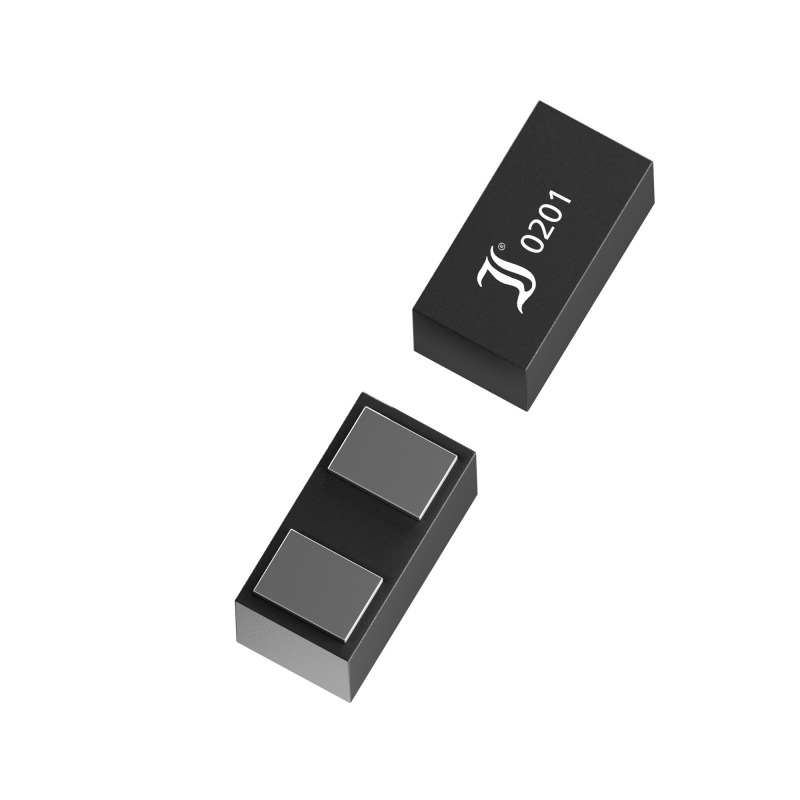

Package 0603
Qualification Industrial Grade
Config Bidirectional Single
Life Cycle active
ESD sensitive No
MSL 1

Breakdown voltage VBRmin 6 V
VBRnom 7.75 V
VBRmax 9.5 V
@ IT 1 mA
Stand-off voltage VWM 5 V
@ ID 5E-8 A
@ IR null mA
Peak pulse power dissipation PPPM 25 W
No of channels Channels 1
ESD contact Vpp 17 kV
ESD HBM Vpp 17 kV
Junction temperature Tjmin -50 °C
Tjmax 125 °C
Maximum reverse current ID @ VWM 0.05 µA
Maximum clamping voltage VC 15 V
@ IPPM 2 A
Junction capacitance Cj 6.5 pF
@ VR 0 V
Net weight mnet 0.0001 g
Marking Marking RB
Case flammability UL94-V0 Yes
Thermal resistance junction RTH null K/W
Location null
UL recognized UL-Recognition null
Thermal resistance junction (b) RTH null K/W
Location null
Storage temperature Tsmin -50 °C
Tsmax 150 °C
Solder & Assembly Solder & Assembly 260°/10s
