MMTL431B
Diode Shunt Regulator

Downloads & Links
Technical data
Related products
News and Updates
Application Reference Diagrams
Request sample

Product information

Product family Diode Shunt Regulator
Voltage reference, temperature compensated
Article description MMTL431B Diode Shunt Reg. Ikmin < 0.07 mA
Shunt Regulator, SOT-23, 2.45V, 37V, 150°C, 0.03mA
Minimum order quantity 3.000
Stock 30.000
Customs Tariff Number 85411000
RoHS compliant
REACH not declarable
Lead free Yes
Halogen free Yes

Downloads & Links

Distributor Availability

Technical data

Article number MMTL431B
MMTL431B Single
Type SMD

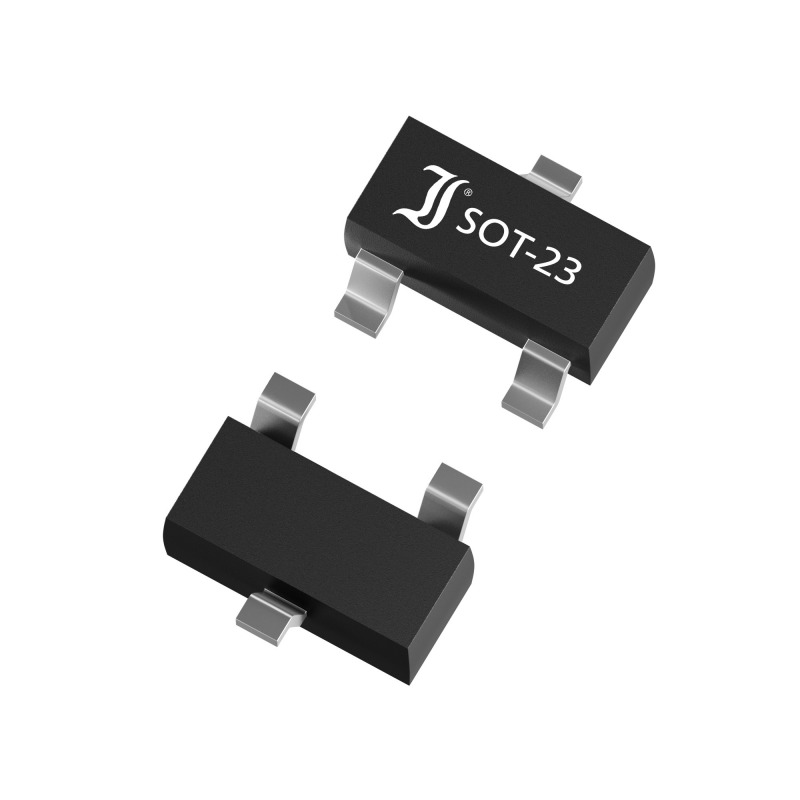

Package SOT-23
Qualification Industrial Grade
Config Single
Life Cycle active
ESD sensitive No
MSL 3

Reference voltage VREFmin 2.483 V
VREF 2.495 V
VREFmax 2.507 V
Tolerance Voltage Tolerance ±0.5%
Cathode voltage Vkmin 2.45 V
Vkmax 37 V
Vktyp null V
Cathode current Ikmin 0.07 mA
Ikmax 100 mA
Power dissipation Ptot 0.3 W
@ TLoc 25 °C
Location ambient
Junction temperature Tjmin -55 °C
Tjmax 150 °C
Storage temperature Tsmin -55 °C
Tsmax 150 °C
Thermal resistance junction RTH 417 K/W
Location ambient
Net weight mnet 0.01 g
Marking Marking 431B
Case flammability UL94-V0 Yes
UL recognized UL-Recognition null
Solder & Assembly Solder & Assembly 260°C/10s
