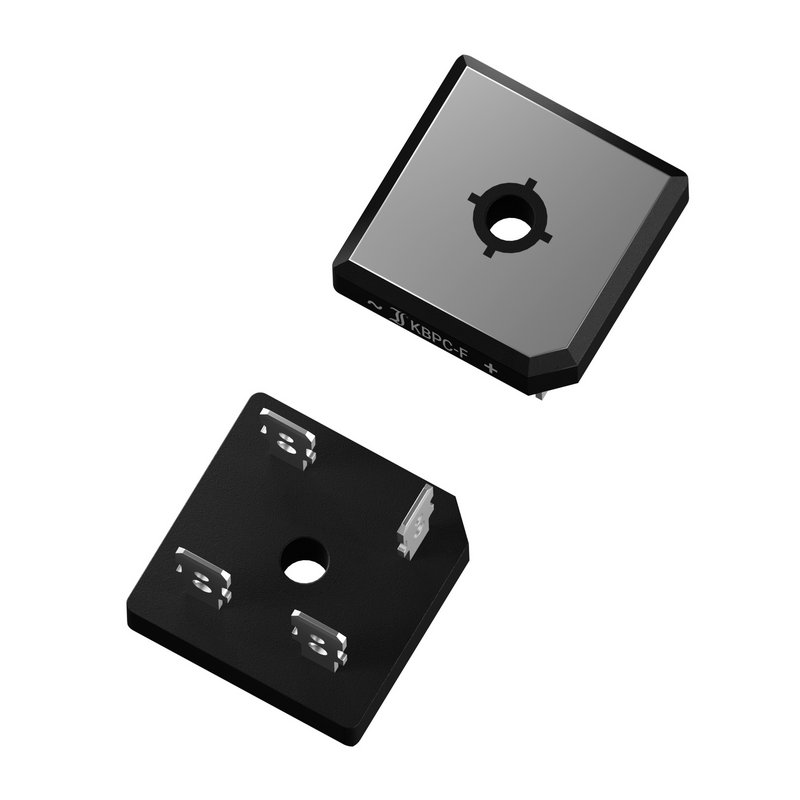

KBPC5006FP
Bridge Rectifiers, Single Phase

Downloads & Links
Technical data
News and Updates
Application Reference Diagrams
Request sample

Product information

Product family Bridge Rectifiers, Single Phase
Single phase input rectification
Article description KBPC5006FP
Bridge, 1-ph, KBPC, 600V, 50A, 150°C
Minimum order quantity 240
Stock 1.440
Customs Tariff Number 85411000
RoHS compliant with exemption 7(a)-I
REACH declarable
Lead free No
Halogen free No

Downloads & Links

Distributor Availability

Technical data

Article number KBPC5006FP
KBPC5006FP 1 Phase Bridge
Type Fast-on
Package KBPC
Qualification Industrial Grade
Config 1 Phase Bridge
Life Cycle active
ESD sensitive No
MSL n/a

Repetitive peak reverse voltage VRRM 600 V
AC input voltage VVRSM 420 V
Maximum average forward rectified current IFAV 50 A
@ TLoc 50 °C
Location Contact
Junction temperature Tjmin -50 °C
Tjmax 150 °C
Peak forward surge current 50Hz IFSM 400 A
Peak forward surge current 60Hz IFSM 450 A
Forward voltage 25°C VF 1.1 V
@ IF 25 A
Leakage current 25°C IR 10 µA
@ VR 600 V
Reverse recovery time trr 1500 ns
Junction capacitance Cj 185 pF
@ VR 4 V
Net weight mnet 17 g
Marking Marking KBPC5006FP
Rating for fusing i²t 800 A²s
Case flammability UL94-V0 Yes
Thermal resistance junction RTH 1.2 K/W
Location case
UL recognized UL-Recognition E175067
Thermal resistance junction (b) RTH null K/W
Location null
Storage temperature Tsmin -50 °C
Tsmax 150 °C
Solder & Assembly Solder & Assembly 260°C/10s
