DI025N06PT
MOSFETs (Field Effect Transistors)

Downloads & Links
Technical data
Related products
News and Updates
Application Reference Diagrams
Request sample

Product information

Product family MOSFETs (Field Effect Transistors)
(Power) switches, signal processing, polarity protection
Article description DI025N06PT
MOSFET, PowerQFN 3x3, N, 65V, 25A, 20mΩ, 150°C
Minimum order quantity 5.000
Stock 0
Customs Tariff Number 85412900
RoHS compliant
REACH not declarable
Lead free Yes
Halogen free Yes

Downloads & Links

Distributor Availability

Technical data

Article number DI025N06PT
DI025N06PT Single
Type SMD

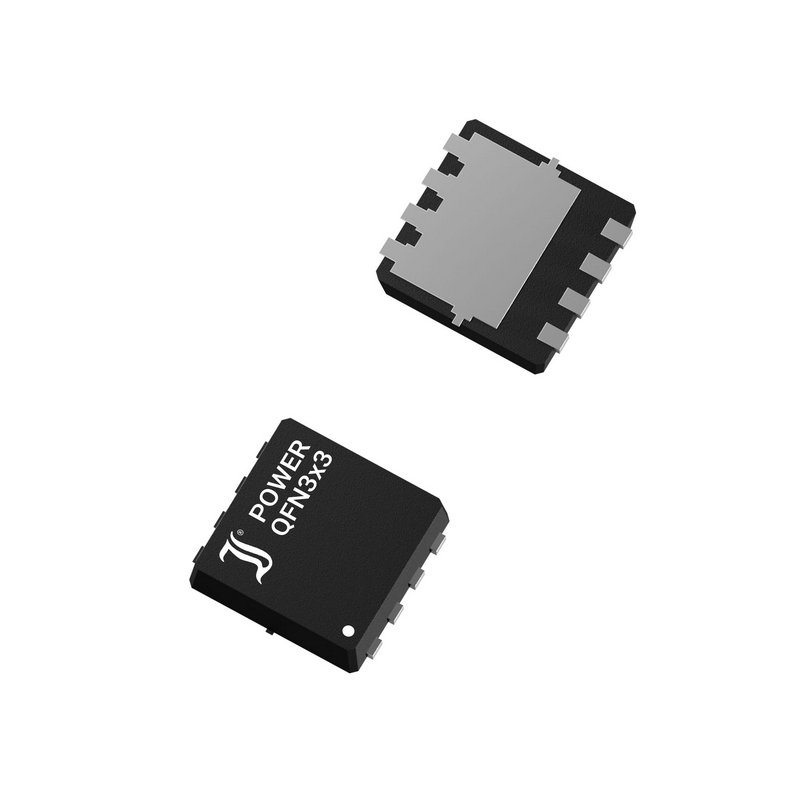

Package PowerQFN 3x3
Qualification Industrial Grade
Config Single
Life Cycle active
ESD sensitive No
MSL 3

ESD protection ESD protected No
Polarity pol N
Drain source voltage VDS 65 V
Drain current 25°C ID 25 A
On-resistance 1 RDSon1 0.02 Ω
@ ID 8 A
@ VGS 10 V
Drain current 100°C ID 15 A
On-resistance 2 RDSon2 0.03 Ω
@ ID 5 A
@ VGS 4.5 V
Junction temperature Tjmin -55 °C
Tjmax 150 °C
Power dissipation Ptot 25 W
@ TLoc 25 °C
Location Contact
Avalanche Yes
Peak drain current IDM 80 A
@ tp 100 µs
Threshold voltage VGSth min 1.4 V
VGSth max 2.5 V
Turn-on delay time tD(on) 6 ns
Rise time tr 7 ns
Turn-off delay time tD(off) 6 ns
Fall time tf 1 ns
Total gate charge (10V) Qg (10V) 9 nC
Total gate charge (4.5V) Qg (4.5V) null nC
Gate-drain charge Qgd 3 nC
Single pulse avalanche energy Eas 4.3 mJ
Input capacitance Ciss 406 pF
Output capacitance Coss 147 pF
Reverse transfer capacitance Crss 18 pF
Reverse recovery charge Qrr 4 nC
Case flammability UL94-V0 Yes
Net weight mnet 0.1 g
Marking Marking Type
Thermal resistance junction RTH 5 K/W
Location case
UL recognized UL-Recognition null
Thermal resistance junction (b) RTH 45 K/W
Location ambient
Storage temperature Tsmin -55 °C
Tsmax 150 °C
Solder & Assembly Solder & Assembly 260°/10s
Gate source leakage current IGSS 0.1 µA
@ VGS 20 V
Drain source leakage current IDSS 1 µA
@ VDS 52 V
Gate source voltage DC VGSS 20 V
Gate source voltage ESD VGSS null V
Forward transconductance gfs 9.6 mA/V
Intrinsic gate resistance RGi 1.2 Ω
