2SC2983
Bipolar Transistors

Downloads & Links
Technical data
Related products
News and Updates
Request sample

Product information

Product family Bipolar Transistors
Control and signal processing
Article description 2SC2983
BJT, DPAK, 160V, 1500mA, NPN, 15W, 150°C
Minimum order quantity 2.500
Stock 67.500
Customs Tariff Number 85412900
RoHS compliant with exemption 7(a)-I
REACH declarable
Lead free No
Halogen free No

Downloads & Links

Distributor Availability

Technical data

Article number 2SC2983
2SC2983 Single
Type SMD

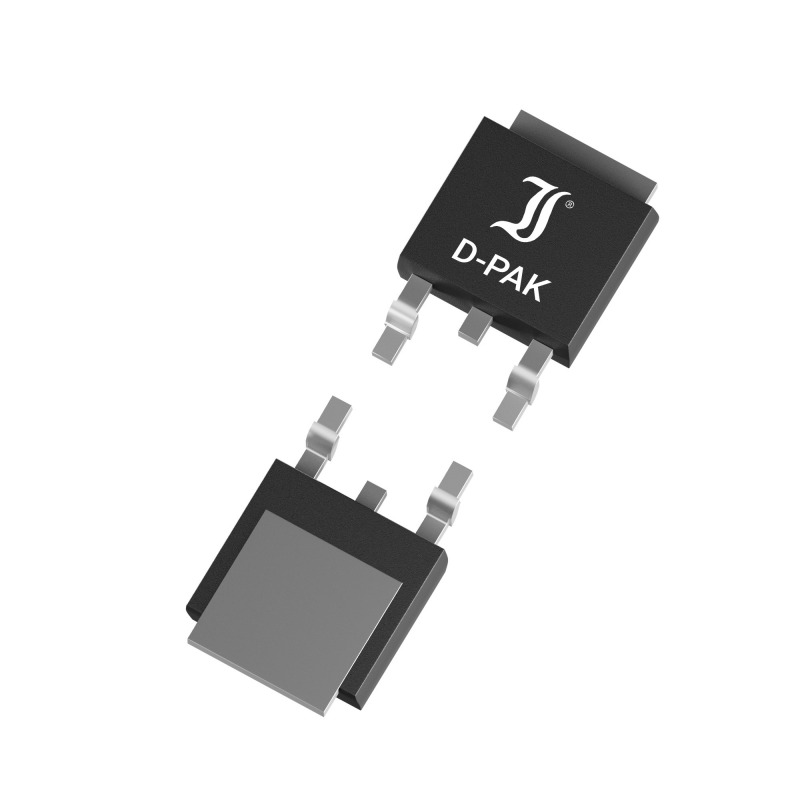

Package TO-252AA/D-PAK
Qualification Industrial Grade
Config Single
Life Cycle active
ESD sensitive No
MSL 3

Collector Emitter voltage VCEO 160 V
DC Collector current IC 2500 mA
Polarity pol NPN
Power dissipation Ptot 15 W
@ TLoc 25 °C
Location ambient
DC current gain hfe 150
@ VCE 5 V
@ IC 100 mA
DC current gain (b) hfe null
@ VCE null V
@ IC null mA
DC current gain (c) hfe null
@ VCE null V
@ IC null mA
Junction temperature Tjmin -55 °C
Tjmax 150 °C
Peak Collector Current ICM null A
Peak Base current IBM null mA
Collector Base voltage VCBO 160 V
Emitter Base voltage VEBO 5 V
Collector saturation voltage VCEsat 1500 mV
@ IC 500 mA
@ IB 50 mA
Base saturation voltage VBEsat null V
@ IC null mA
@ IB null mA
Base Emitter voltage VBE 1 V
Collector Base cutoff current ICBO 1 nA
Emitter Base cutoff current IEBO 1000 nA
Gain bandwidth product ft 100 MHz
@ IC 100 mA
@ VCE 10 V
@ f null MHz
Marking Marking 1918r
Thermal resistance junction RTH 125 K/W
Location ambient
Thermal resistance junction (b) RTH 8.3 K/W
Location case
Net weight mnet 0.32 g
Case flammability UL94-V0 Yes
UL recognized UL-Recognition null
Collector Base capacitance CCBO null pF
@ VCB null V
Storage temperature Tsmin -55 °C
Tsmax 150 °C
