SDB0530WT | Small Components for Efficient Power Management

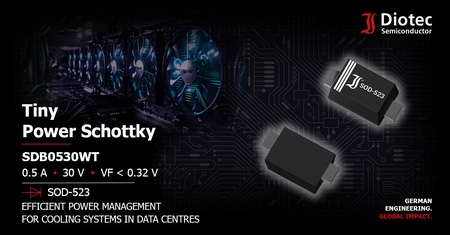

With the SDB0530WT, Diotec Semiconductor, with its headquarters in Germany, offers a compact 0.5 A / 30 V Schottky diode in an ultra-small SOD-523 package. Designed for low-voltage rectification, reverse polarity protection and current steering, the device supports space-efficiency and reliable electronic circuit designs in data centre infrastructure.

Modern data centres depend on reliable power distribution, efficient cooling systems and continuous monitoring to maintain uninterrupted operation. From server management electronics to power supply control boards and monitoring equipment, numerous electronic circuits work together to ensure stable operating conditions.

While high-power semiconductor devices handle the main energy conversion stages, smaller discrete components are not to be underestimated in protecting and controlling sensitive low-voltage circuitry.

With the SDB0530WT, Diotec Semiconductor provides a compact Schottky diode suitable for a range of auxiliary power management. Its low forward voltage drop and fast switching characteristics make it an efficient choice for applications where PCB space, power losses and reliable current control are important for the design.

Efficient Rectification and Circuit Protection

In data centre electronics, the SDB0530WT by Diotec Semiconductor can be used for output rectification in appropriately rated switching power supplies, reverse-current blocking in backup supply circuits and reverse polarity protection of sensitive electronic components.

Additionally, the device can serve as a steering diode, directing transient currents toward designated supply rails when integrated into a properly designed protection circuit.

Its fast-switching behavior makes the SDB0530WT particularly suitable for applications requiring rapid current commutation, while its small SOD-523 package enables smooth integration into densely populated PCBs.

Technical Features and Specifications

• Average forward current (IFAV): 500 mA
• Repetitive reverse voltage (VRRM): 30 V
• Non-repetitive peak forward surge current (IFSM): 3 A at 1 ms
• Forward voltage (VF): below 0.56 V at 500 mA and 25°C
• Forward voltage (VF): below 0.32 V at 1 mA and 25°C
• Reverse leakage current (IR): below 80 µA at 10 V and 25°C
• Package: ultra-compact SOD-523

Compact Semiconductor Solutions from Diotec

For development engineers, the SDB0530WT offers a combination of low forward voltage, fast switching characteristics and compact packaging for auxiliary power and protection circuits. For technical buyers, its standardized package and clearly defined electrical characteristics support component evaluation and integration into existing designs.

With the SDB0530WT, Diotec Semiconductor demonstrates its commitment to providing compact and efficient discrete semiconductor solutions for modern power electronics, supporting the development of reliable electronic systems used in both data centre infrastructure and industrial applications.
