SBPD1550T2
Schottky Diodes
Product information
| Product family | Schottky Diodes Output rectification, polarity protection |
|---|---|
| Article description |
SBPD1550T2

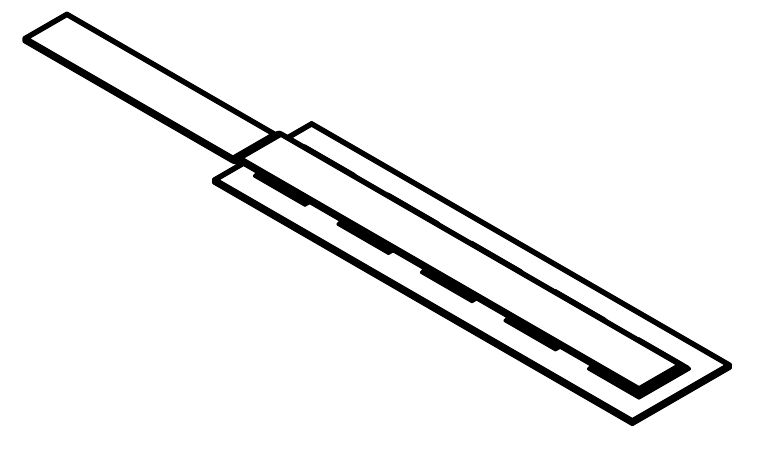

Solar Bypass Diode Unpackaged
5x PRC60U, 73.5 x 11.6 x 0.75
Solar Bypass Diode Unpackaged, T2, 50V, 15A |
| Minimum order quantity | 1 |
| Stock | 0 |
| Customs Tariff Number | 85411000 |
| RoHS | compliant with exemption |
| REACH | declarable |
| Lead free | No |
| Halogen free | No |
Downloads & Links
Technical data
| Article number | SBPD1550T2 | |
|---|---|---|
|
||
| Type | Stud | |
| Package | Unpackaged Solar T2 | |
| Qualification | Industrial Grade | |
| Config | Single | |
| Life Cycle | engineering sample | |
| ESD sensitive | No | |
| MSL | n/a | |
| Repetitive peak reverse voltage | VRRM | 50 V |
| Maximum average forward rectified current | IFAV | 15.000 A |
| @ TLoc | ||
| Location | ||
| Junction temperature | Tjmin | |
| Tjmax | ||
| Forward voltage 25°C | VF | 0.68 V |
| @ IF | 5.00 A | |
| Forward voltage (b) | VF | |
| @ IF | ||
| @ Tj | ||
| Peak forward surge current 50Hz | IFSM | 650.00 A |
| Leakage current 25°C | IR | 5.000 µA |
| @ VR | 50 V | |
| Leakage current @Tx | IR | |
| @ VR | ||
| @ Tj | ||
| Junction capacitance | Cj | 1400 pF |
| @ VR | 4.0 V | |
| Net weight | mnet | |
| Case flammability | UL94-V0 | No |
| UL recognized | UL-Recognition | |
| Surge peak reverse voltage | VRMS | |
| Repetitive peak forward current | IFRM | |
| Peak reverse avalanche energy | ERSM | |
| Storage temperature | Tsmin | |
| Tsmax | ||
| Marking | Marking | |
| Thermal resistance junction | RTH | |
| Location | ||
| Thermal resistance junction (b) | RTH | |
| Location | ||
| Rating for fusing | i²t | |
| Solder & Assembly | Solder & Assembly | |
