LDI0320-ADEEN
Linear Voltage Regulator
Product information
| Product family | Linear Voltage Regulator Constant DC voltage regulation, Protection against voltage overshoot |
|---|---|
| Article description |
LDI0320-ADEEN

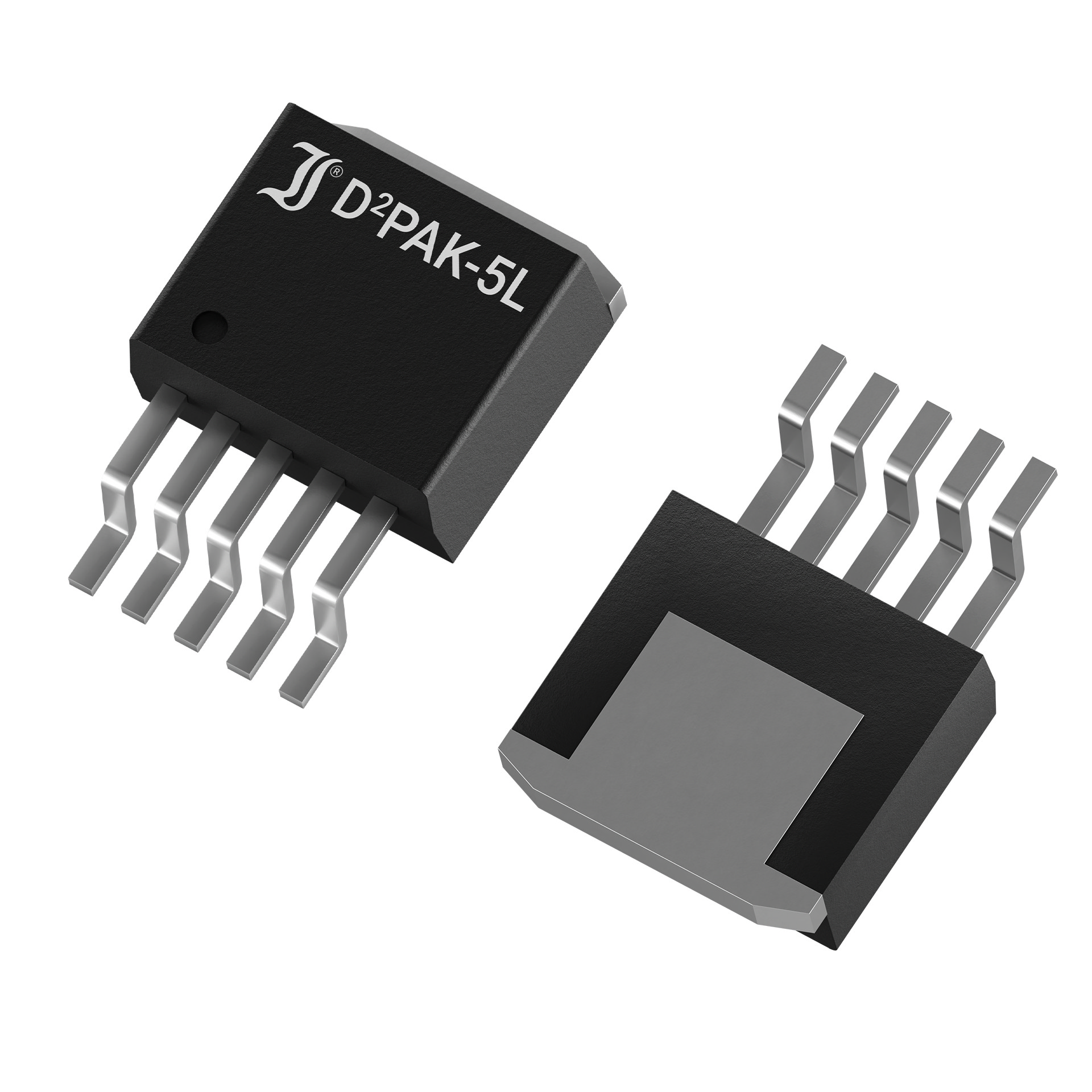

LDO, D2PAK-5, 1.24V-15V, 150°C, 3A |
| Minimum order quantity | 800 |
| Stock | 800 |
| Customs Tariff Number | 85423990 |
| RoHS | compliant with exemption 7(a)-I |
| REACH | declarable |
| Lead free | No |
| Halogen free | No |
Downloads & Links
Technical data
| Article number | LDI0320-ADEEN | |
|---|---|---|
|
||
| Type | SMD | |
| Package | TO-263-5L | |
| Qualification | Industrial Grade | |
| Config | Single | |
| Life Cycle | active | |
| ESD sensitive | No | |
| MSL | 3 | |
| Polarity | pol | N |
| Output voltage | VOUTmin | 1.24 V |
| VOUTmax | 15 V | |
| Output current | IO | 3 A |
| IOmin | 10 mA | |
| Tolerance | Voltage Tolerance | |
| Input voltage | Vin | 20 V |
| Vin-min | 3 V | |
| Power dissipation | Ptot | 62.5 W |
| @ TLoc | 25 °C | |
| Location | ambient | |
| Junction temperature | Tjmin | -40 °C |
| Tjmax | 150 °C | |
| Storage temperature | Tsmin | -55 °C |
| Tsmax | 150 °C | |
| Dropout voltage | VD | 0.2 V |
| @ IOUT | null mA | |
| Dropout voltage (b) | VD | null V |
| @ IOUT | null mA | |
| Dropout voltage (c) | VD | null V |
| @ IOUT | null mA | |
| Quiescent current | IQ | 20 mA |
| Thermal resistance junction | RTH | 28 K/W |
| Location | ambient | |
| Thermal resistance junction (b) | RTH | 3 K/W |
| Location | case | |
| Net weight | mnet | 0.032 g |
| Marking | Marking | Type |
| Case flammability | UL94-V0 | Yes |
| UL recognized | UL-Recognition | null |
| Solder & Assembly | Solder & Assembly | 260°/10s |
| Line regulation | DVout-in | .5 |
| Load regulation | DVout-in | 1 |
