DB3
Diacs

Product information

Product family	Diacs Trigger diodes, AC regulators
Article description	DB3 Diac, DO-35, 28V, 36V, 2A, 100°C, 0.15W
Minimum order quantity	10.000
Stock	40.000
Customs Tariff Number	85413000
RoHS	compliant
REACH	declarable
Lead free	Yes
Halogen free	No

Article number	DB3

Type	Axial

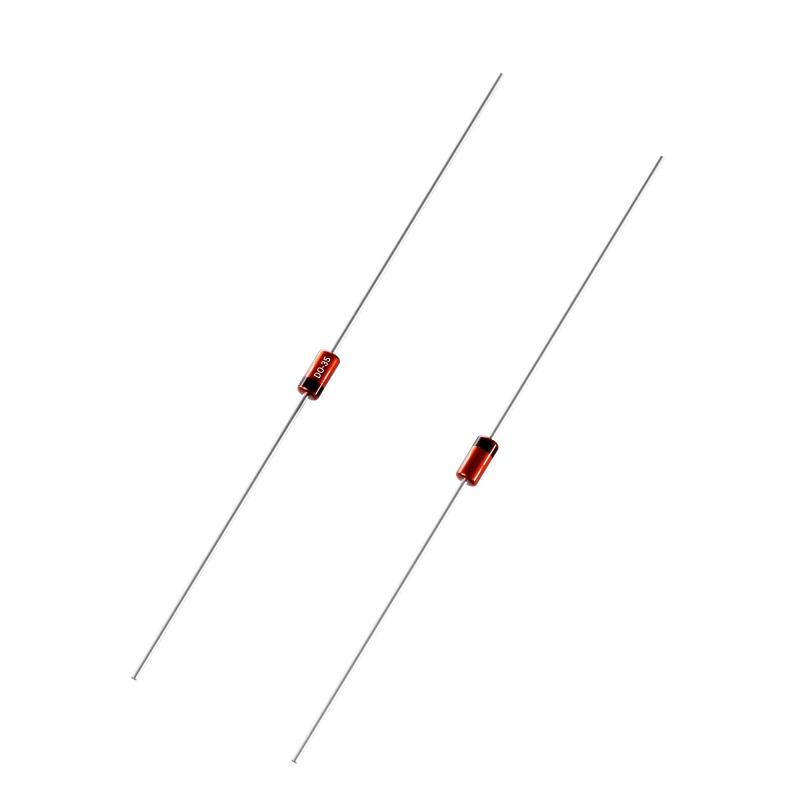

Package	DO-35
Qualification	Industrial Grade
Config	Single
Life Cycle	active
ESD sensitive	No
MSL	n/a

Breakover voltage	VBOmin	28 V
	VBOmax	36 V
Repetitive peak forward current	IFRM	2 A

Junction temperature	Tjmin	-50 °C
	Tjmax	100 °C
Power dissipation	Ptot	0.15 W
	@ TLoc	50 °C
	Location	ambient
Maximum breakover current	IBO	200 µA
Junction capacitance	Cj	null pF
	@ VR	null V
Net weight	mnet	0.17 g
Case flammability	UL94-V0	Yes
Thermal resistance junction	RTH	300 K/W
	Location	ambient
UL recognized	UL-Recognition	null
Thermal resistance junction (b)	RTH	null K/W
	Location	null
Storage temperature	Tsmin	-50 °C
	Tsmax	175 °C
Solder & Assembly	Solder & Assembly	260°/10s
Marking	Marking	Type
