2CL71
High Voltage Rectifiers

Product information

Product family	High Voltage Rectifiers Rectification of high voltages

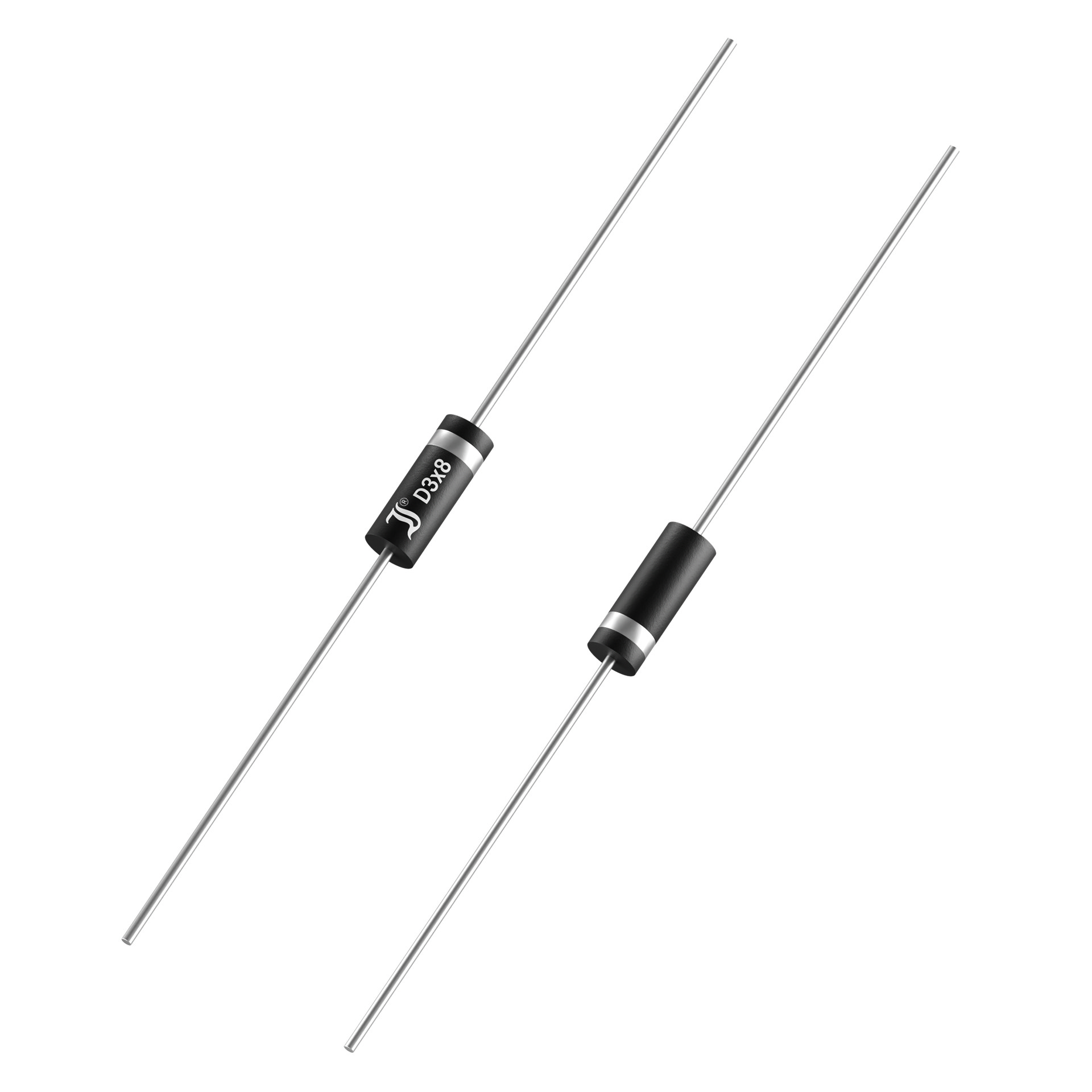

Article description	2CL71 HV Diode, D3x8, 8000V, 5mA, 80ns
Minimum order quantity	5.000
Stock	0
Customs Tariff Number	85411000
RoHS	compliant with exemption
REACH	not declarable
Lead free	No
Halogen free	Yes

Article number	2CL71

Type	Axial
Package	D3x8
Qualification	Industrial Grade
Config	Single
Life Cycle	active
ESD sensitive	No
MSL	n/a

Repetitive peak reverse voltage	VRRM	8000 V
DC blocking voltage	VDC
Maximum average forward rectified current	IFAV	0.005 A

	@ TLoc	25 °C
	Location	A
Reverse recovery time	trr	80 ns
Junction temperature	Tjmin	-40 °C
	Tjmax	120 °C
Peak forward surge current 50Hz	IFSM	0.50 A
Peak forward surge current 60Hz	IFSM
Forward voltage 25°C	VF	30.00 V
	@ IF	0.01 A
Forward voltage (b)	VF
	@ IF
	@ Tj
Leakage current 25°C	IR	2.000 µA
	@ VR	8000.0 V
Leakage current @Tx	IR	2.000 µA
	@ VR	8000.0 V
	@ Tj	25 °C
Junction capacitance	Cj
	@ VR
Net weight	mnet	0.500 g
Case flammability	UL94-V0	Yes
UL recognized	UL-Recognition
Surge peak reverse voltage	VRMS	8000 V
Repetitive peak forward current	IFRM	0.1 A
Peak reverse avalanche energy	ERSM
Storage temperature	Tsmin	-40 °C
	Tsmax	120 °C
Marking	Marking	Cathode ring with pattern
Thermal resistance junction	RTH	60.0 K/W
	Location	ambient
Thermal resistance junction (b)	RTH
	Location
Rating for fusing	i²t
Solder & Assembly	Solder & Assembly	260°C/10s
